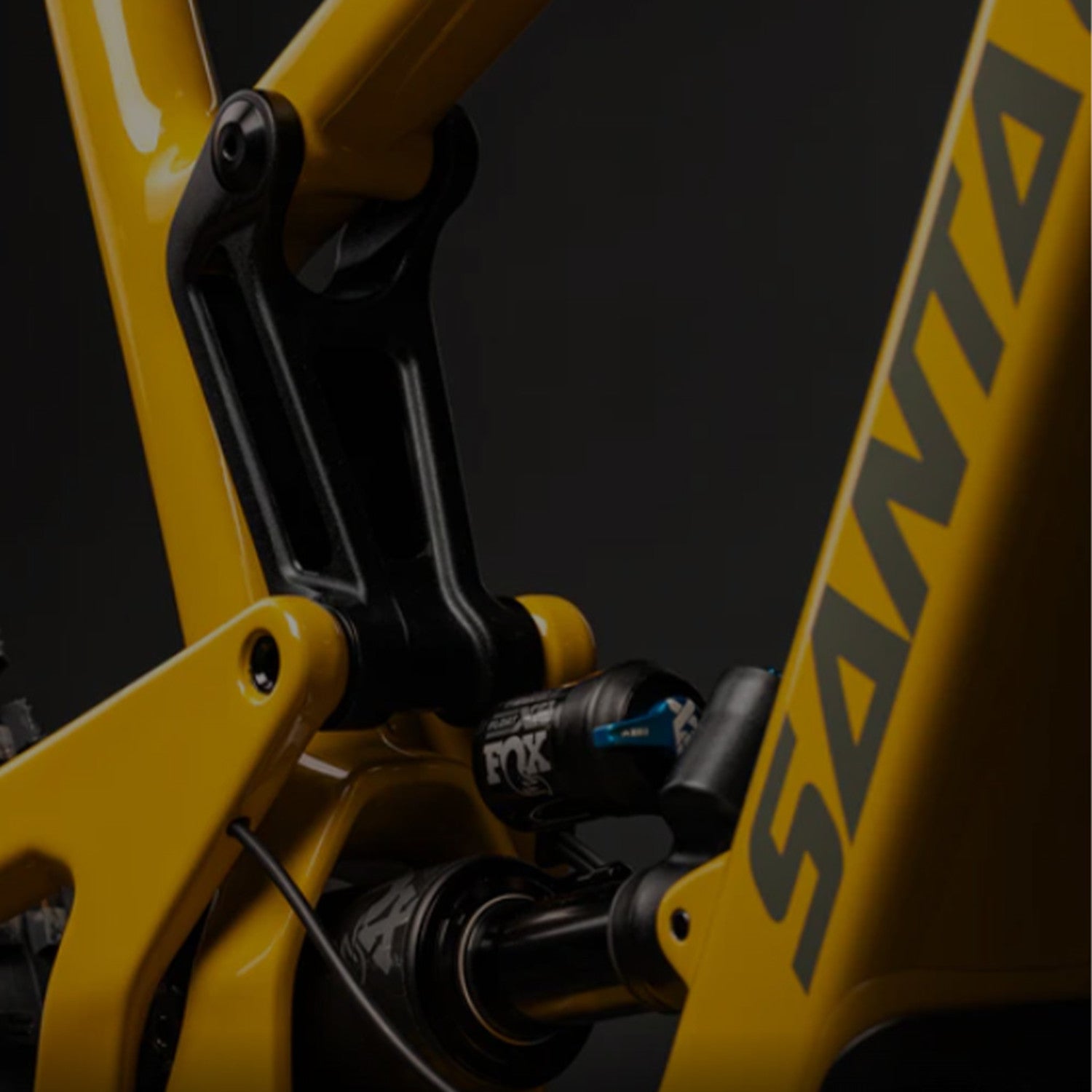

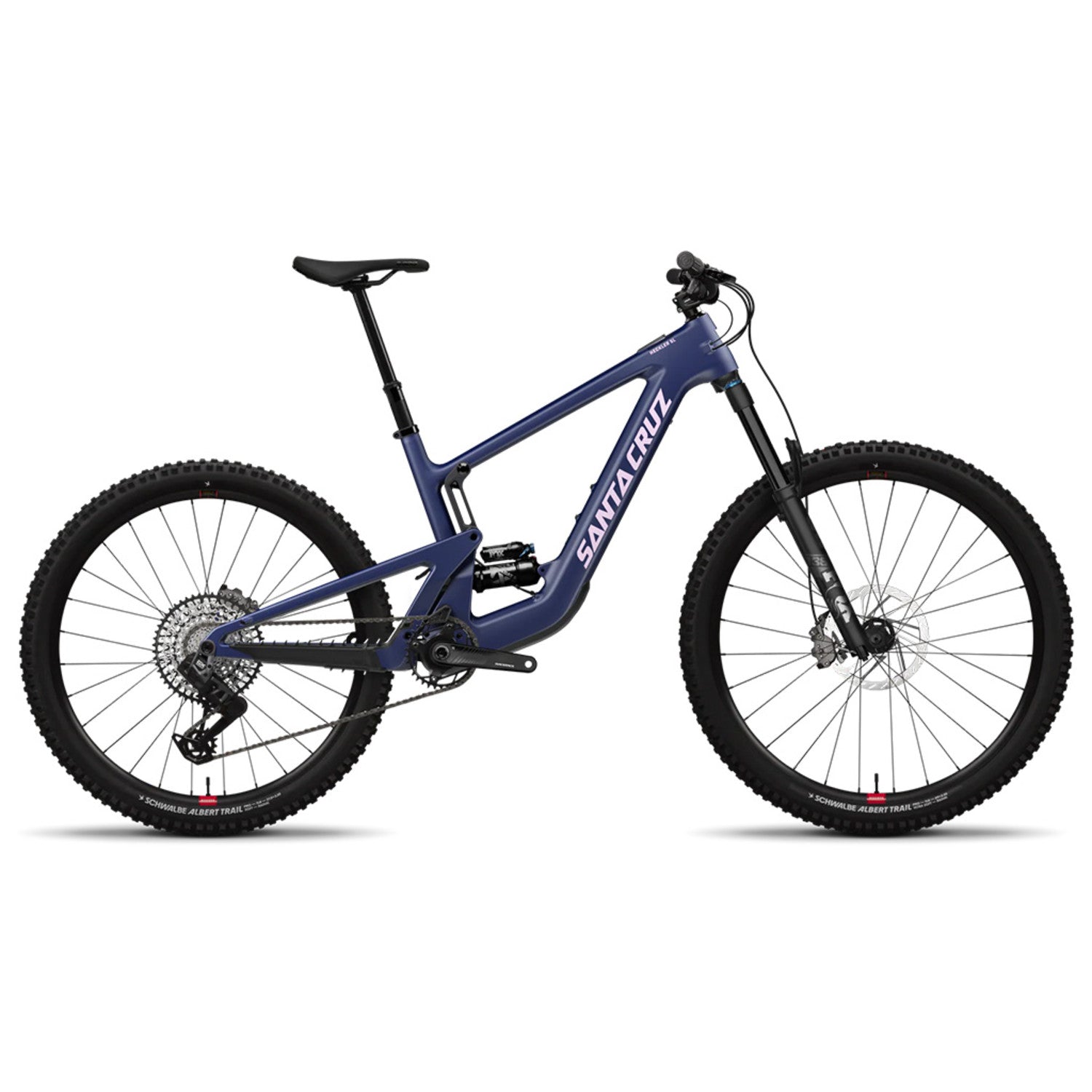

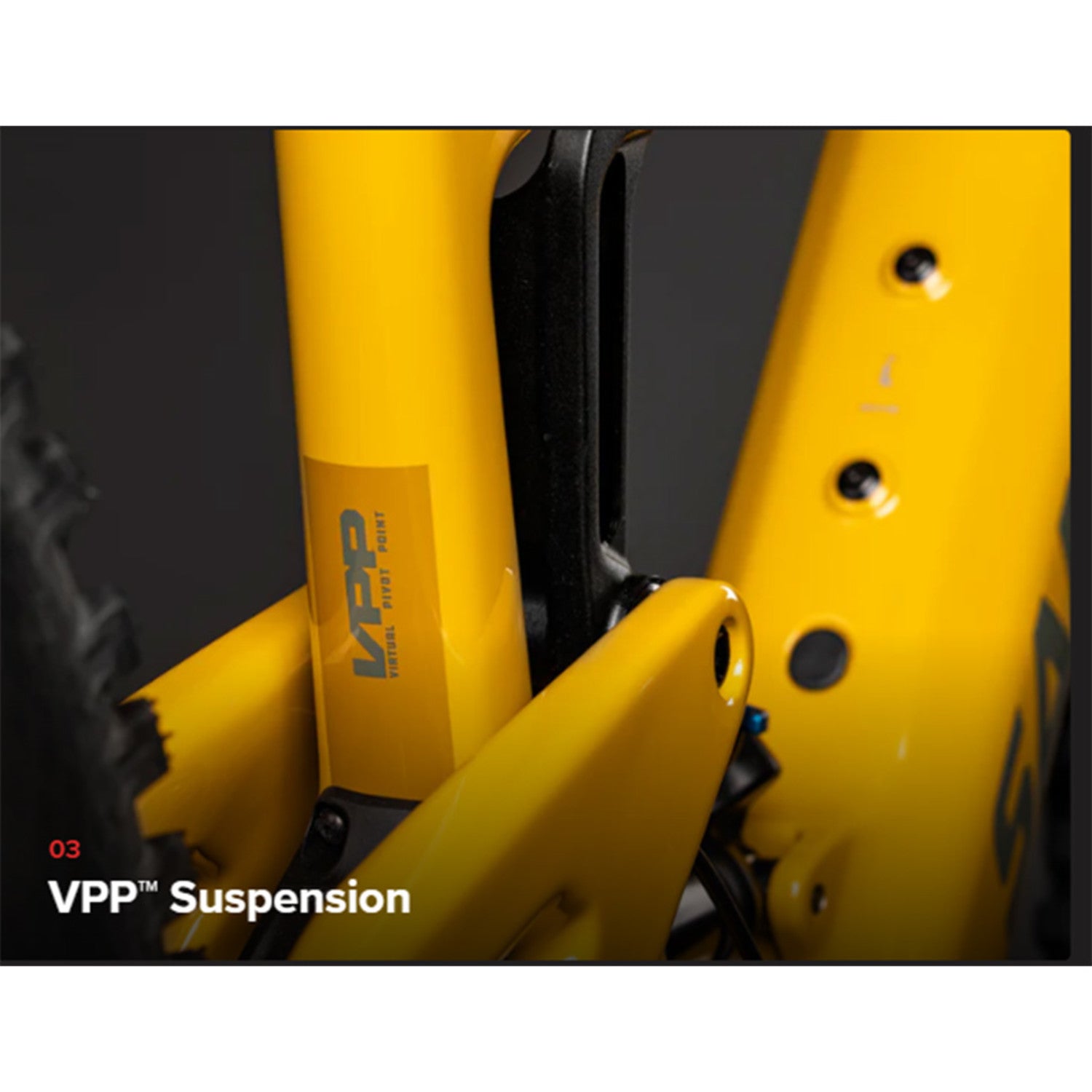

A sneaky ebike that’s lightweight, powerful, and has surprising range. It combines all the on-trail traits of Santa Cruz with the FAZUA RIDE 60 drive unit. With 150mm of legendary VPP™ suspension, mixed wheels, and progressive geometry, the Heckler SL is a trail bike—but with hidden superpowers.
A TRAIL BIKE WITH HIDDEN SUPERPOWERS - The Heckler SL’s trim weight and the FAZUA RIDE 60 motor’s natural torque delivery make it feel like riding a regular mountain bike—just with more punch. The range is comparable to full-power ebikes because, despite a smaller battery, the RIDE 60 motor sips energy, and the significantly lighter bike makes propulsion easier.
MORE POWERFUL, LIGHTER AND BIGGER BATTERY THAN OTHER SLS - It provides added boost up the hills thanks to the compact FAZUA RIDE 60 drive unit, offering the most power in its category. Lightweight (41 lb / 19 kg, depending on build) and equipped with 150mm of legendary VPP™ suspension, MX wheels, and progressive geometry, it handles like a trail bike—just with the extra power.
Specifications
-

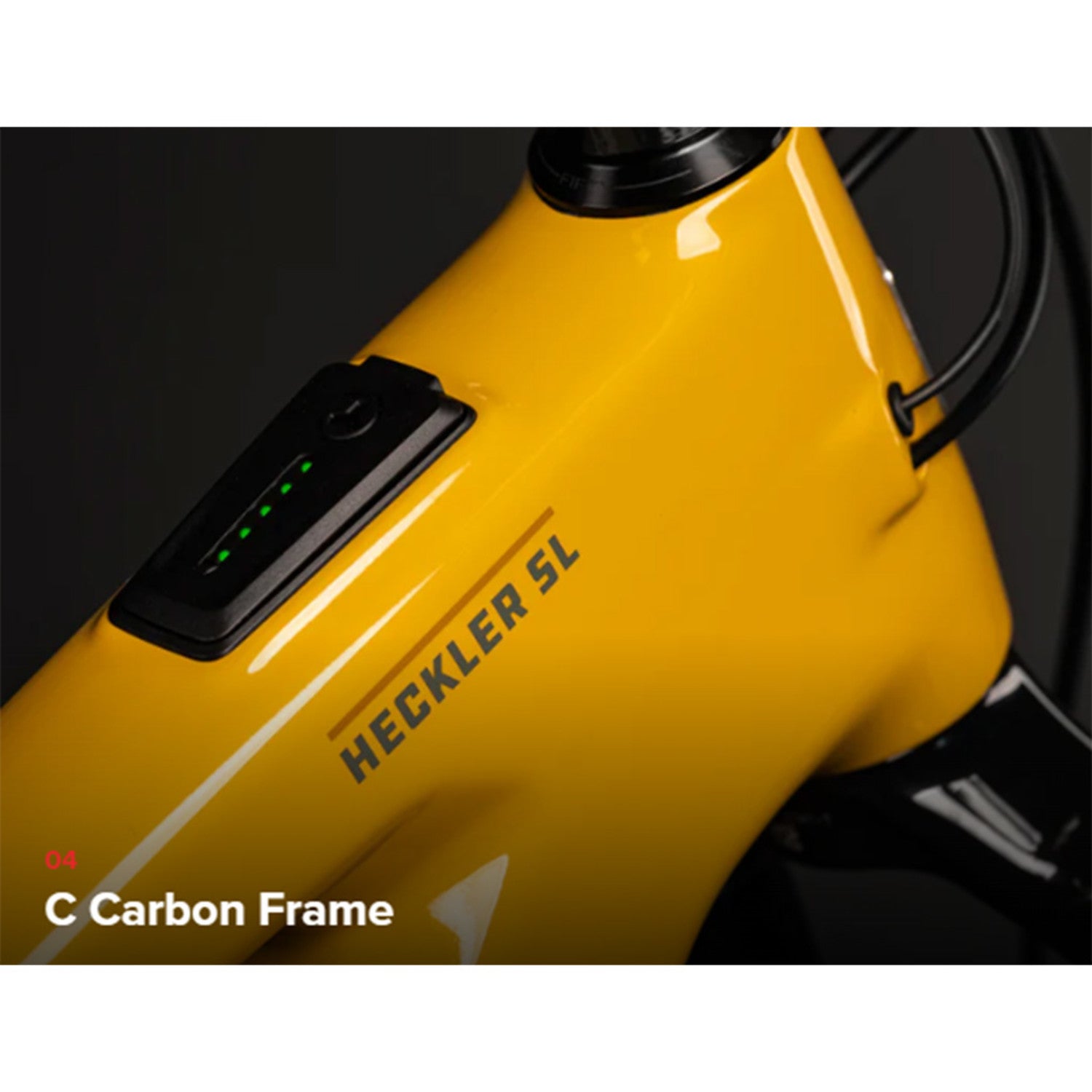

Material - Carbon C
-
Frame - Carbon C MX 150mm Travel VPPâ„¢
-
Travel - 150mm
-
Weight - 43.84lbs / 19.88kg
-
Wheel Size - MX
-
Fork - FOX 36 Float Performance Elite, Grip X2, 160mm
-
Shock - FOX Float X Performance Elite, 210x55
-
Bottom Bracket - N/A
-
Cassette - SRAM GX 1275 Eagle T-Type, 10-52t
-
Chain - SRAM GX Eagle T-Type, Flattop, 12spd
-
Chainguide - OneUp Chainguide
-
Crankset - Race Face Aeffect R All Sizes: 165mm
-
Rear Derailleur - SRAM GX Eagle AXS T-Type, 12spd
-
Right Shifter - SRAM AXS Pod Controller
-

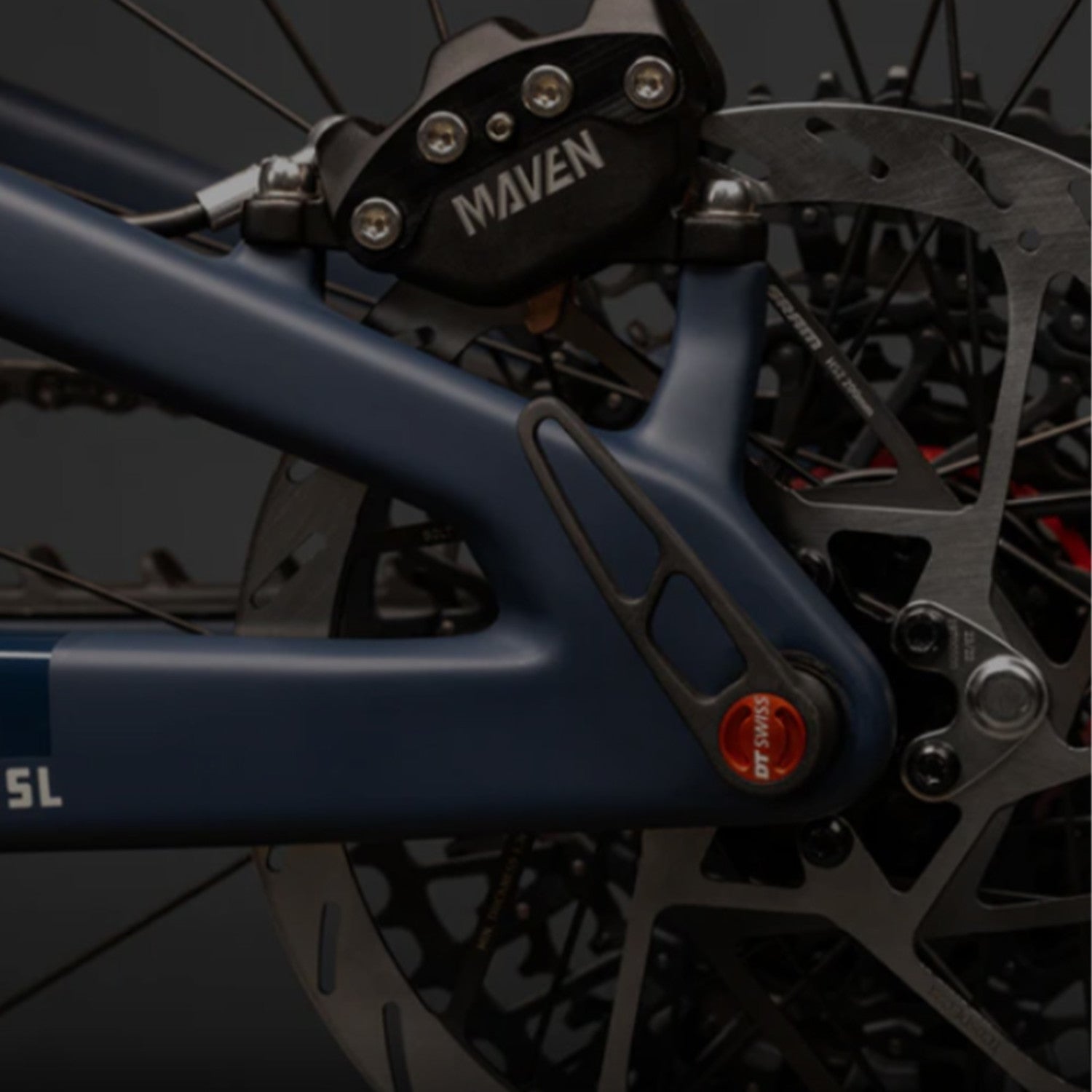

Brakes - SRAM Maven Bronze
-
Front Rotor - SRAM HS2 200mm
-
Rear Rotor - SRAM HS2 200mm
-
Grips / Bar Tape - Santa Cruz Bicycles House Grips
-

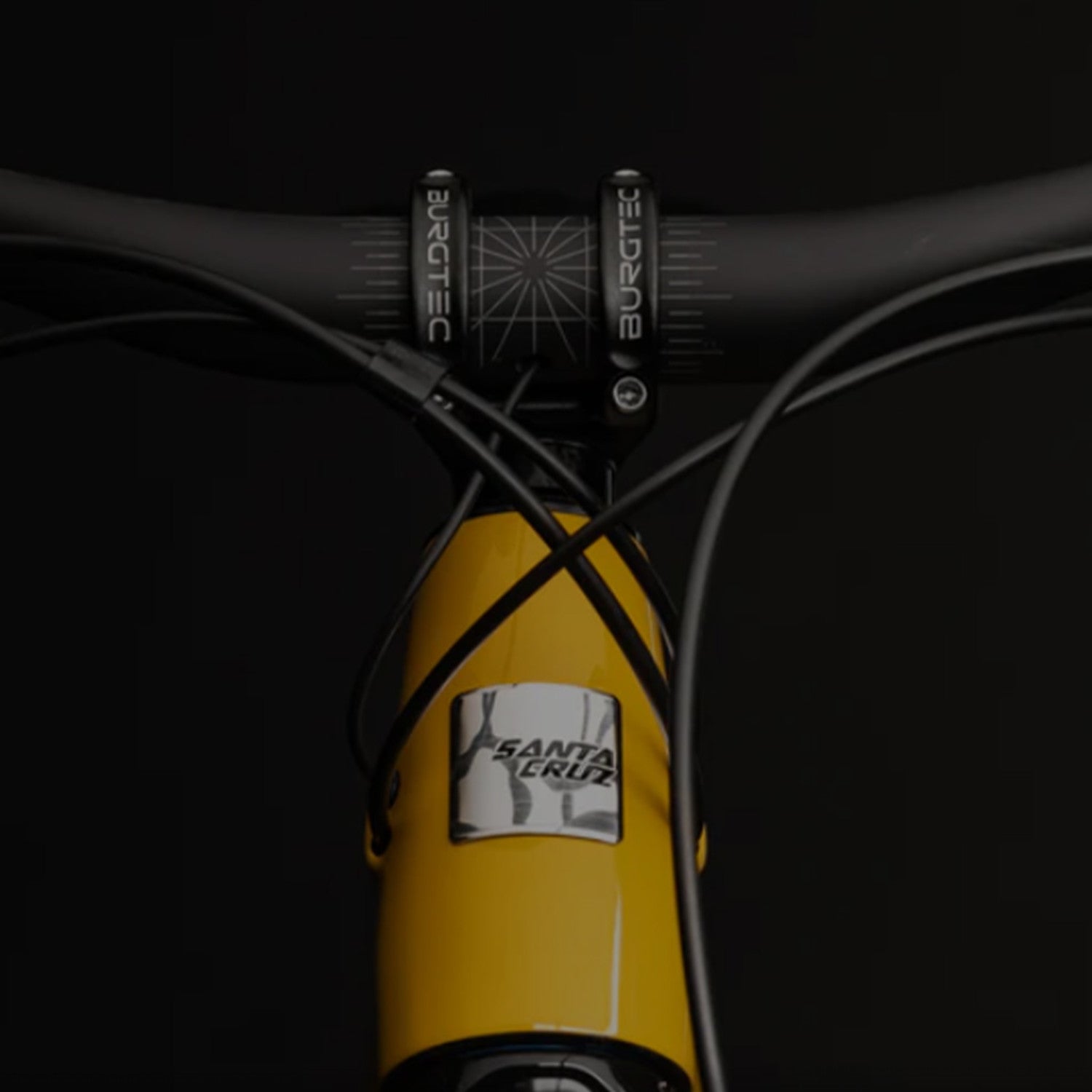

Handlebars - Santa Cruz eCarbon Bar S: 35x800mm, 20mm Rise, M/L/XL/XXL: 35x800mm, 35mm Rise
-
Headset - Cane Creek 50 IS Integrated Headset
-
Saddle - SDG Bel-Air V3 Max Lux-Alloy Atmos
-
Seatpost - OneUp Dropper Post, 31.6 S: 120m, M: 150mm, L: 180mm, XL/XXL 210mm
-
Stem - OneUp Enduro Stem All Sizes: 42mm
-
Front Rim - Reserve 30|SL AL 6069
-
Front Hub - DT Swiss 370, 15x110, 6-Bolt, 28h
-
Front Tire - Schwalbe Albert, 29"x2.5", Trail Radial Ultra Soft
-
Rear Rim - Reserve 30|SL AL 6069
-
Rear Hub - DT Swiss 370, 12x148, XD, 6-Bolt, 36t, 28h
-
Rear Tire - Schwalbe Albert, 27.5"x2.5", Trail Radial Soft
-
Valves - Reserve Fillmore Valves
-
Battery - Fazua 480Wh Integrated Battery
-

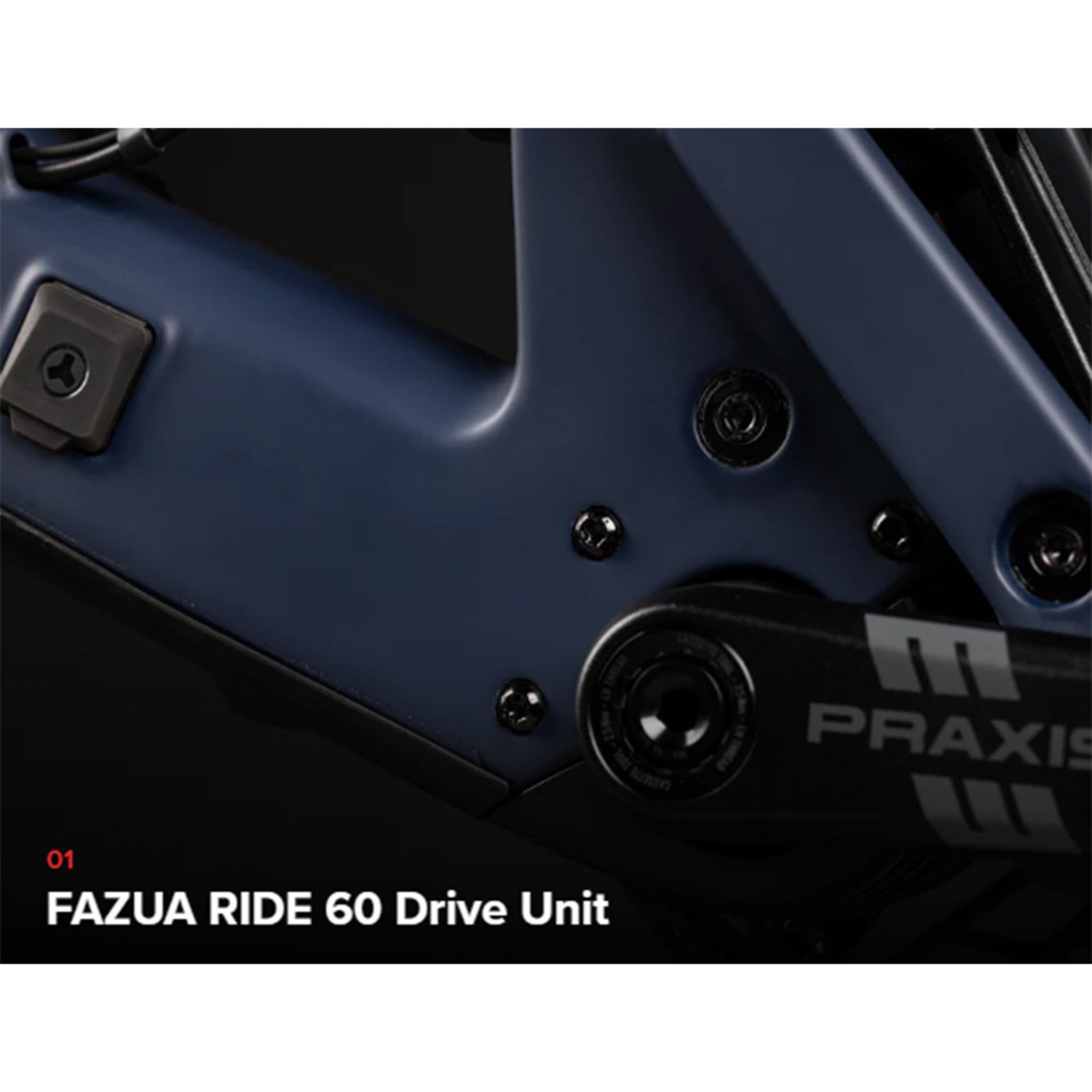

Drive Unit - Fazua Ride 60
-
Bottom Bracket Shell - Fazua DU w/ E-TOR spindle
-
Rear Brake Mount - PM 200mm
-
Shock Length - 210mm
-
Fork Axle to Crown - 571mm
-
Fork Offset - 44mm
-
Front Derailleur Mount - No
-
Headset - IS 41 / IS52
-
Max Chainring Size - 36t
-
Max Rotor Size - 220mm
-
Max Tire Clearance - (May vary according to tire and rim model) 2.6"
-
Rear Spacing - 148mm
-
Shock Bushing Size Front - 30x8
-
Shock Bushing Size Rear - 30x8
-
Shock Stroke - 55mm
-
UDH Compatible - Yes
* Specifications are subject to change without notice
